4000DX Series
Hidden nylon snap buttons for panel connections. Clean, fastener-free surfaces. Glass-fiber reinforced nylon.
4000DX Hidden Snap Button — White

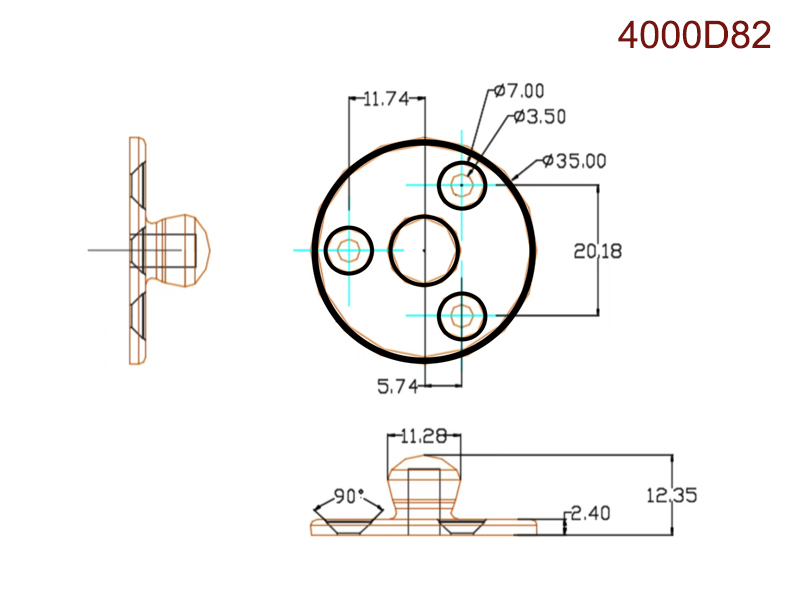

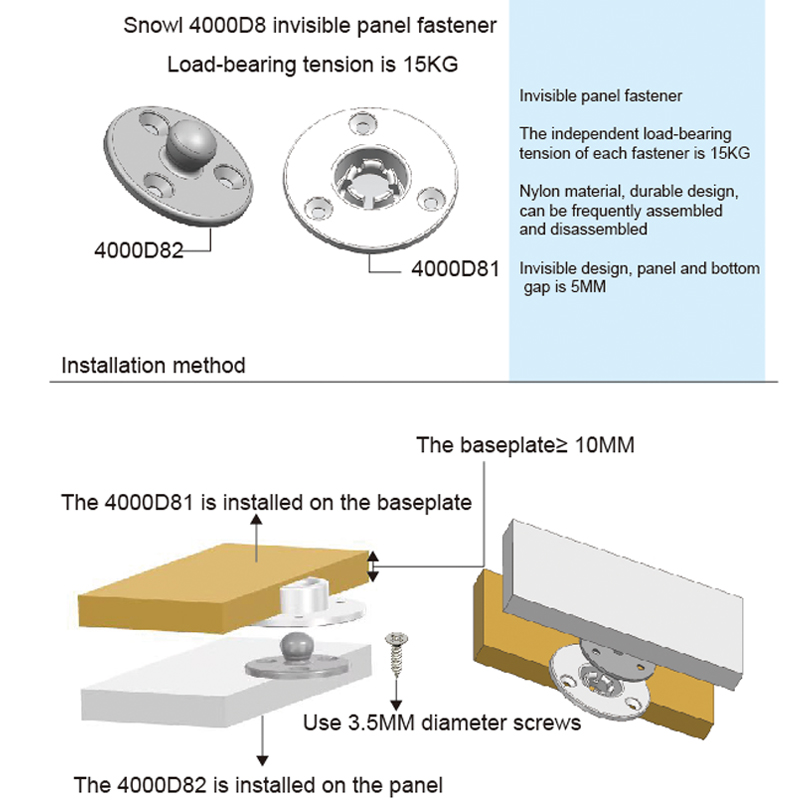

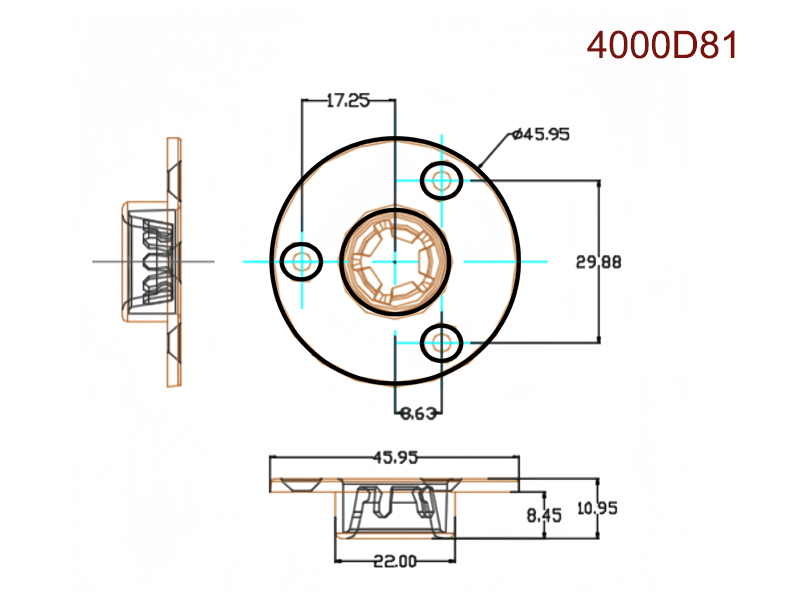

Hidden nylon snap button for panel connections. Female (4000D81) mounts on base panel; male ball (4000D82) mounts on face panel. Creates a clean, fastener-free surface.
| Part | Model | Position | Color |
|---|---|---|---|
| Female | 4000D81 | Base Panel | White |
| Male | 4000D82 | Face Panel | White |

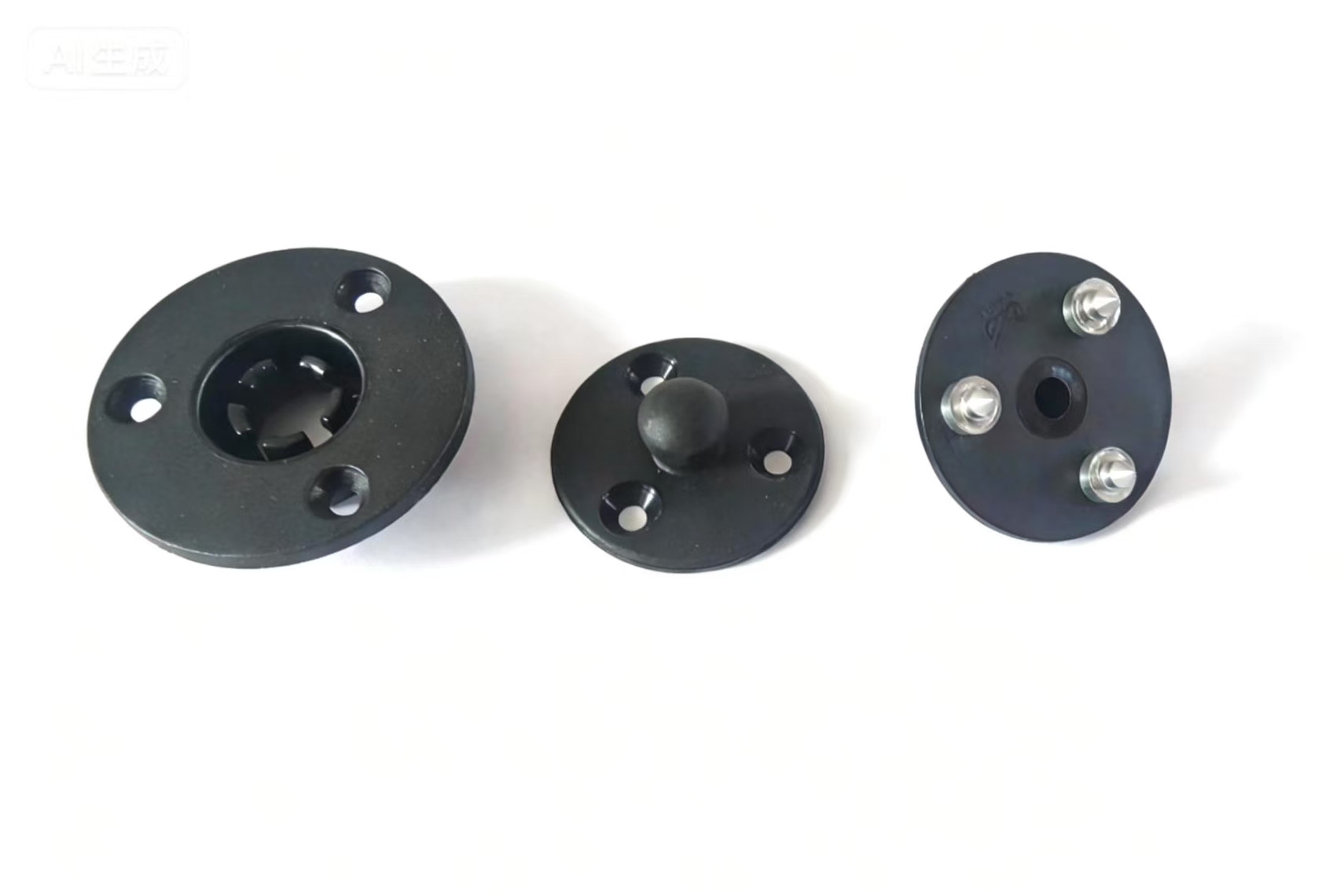

4000DX Hidden Snap Button — Black
Hidden nylon snap button for panel connections. Female (4000D81) mounts on base panel; male ball (4000D82) mounts on face panel. Creates a clean, fastener-free surface.
| Part | Model | Position | Color |
|---|---|---|---|
| Female | 4000D81 | Base Panel | Black |
| Male | 4000D82 | Face Panel | Black |
Hidden Panel Connection — Clean & Strong
Hidden Design
5MM panel gap creates a completely clean, fastener-free surface appearance.
15KG Load
Each fastener independently supports up to 15KG — strong for most panel applications.
Reusable
Glass-fiber reinforced nylon supports repeated assembly and disassembly.
Easy Install
Standard 3.5MM screws and snap-together operation — no special tools needed.
