4000DX Series
Hidden nylon snap buttons designed for panel connections. White and Black finishes. Widely used in furniture, wood panels, metal plates, and architectural decoration applications.
4000DX Hidden Nylon Snap Button — White
Hidden nylon snap button designed for panel connections. The female part (4000D81) mounts on the base panel; the male ball part (4000D82) mounts on the face panel. After installation, the 5MM gap between panels creates a clean, fastener-free surface appearance. Ideal for furniture, wood panels, metal plates, and architectural decoration.
| Model | 4000D8W (White) |

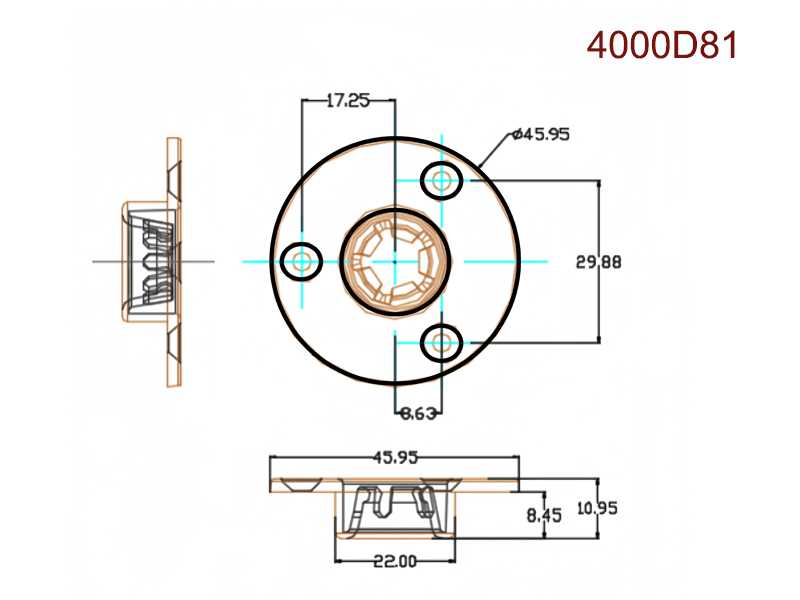

| Female Part | 4000D81 (Socket Base) |

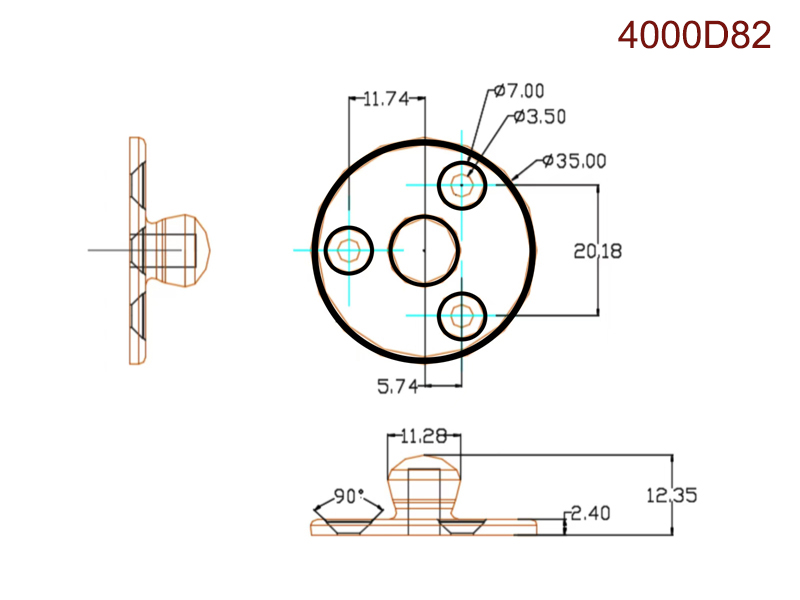

| Male Part | 4000D82 (Ball Head) |
| Color | ⚪ White |
| Material | Glass-Fiber Reinforced Nylon |
| Load Capacity | 15 KG per fastener |
| Panel Gap | 5 MM (after installation) |
| Base Plate Thickness | ≥ 10 MM |
| Screw Diameter | 3.5 MM |
| UV Resistance | UV-stabilized formula |
| Applications | Furniture, wood panels, metal plates, architectural decoration |
| Brand | SNOWL Hong Kong Limited |
- 🔒 Hidden Design — 5MM panel gap after installation, clean and fastener-free surface
- 💪 High Load Capacity — 15KG independent load per fastener
- ♻️ Reusable — Durable nylon supports repeated assembly and disassembly without wear
- 🛠️ Easy Installation — Standard 3.5MM screws, quick to mount
- 🌊 Salt Spray Resistant — Suitable for marine and outdoor panel applications
- 🌞 UV Stabilized — No fading or cracking under sun exposure
- ⚖️ Lightweight — Nylon construction adds no heavy burden
| Part | Model | Installation Position | Color |
|---|---|---|---|
| Female / 母扣 | 4000D81 | Base Panel / 底板 | White |
| Male / 公扣 | 4000D82 | Face Panel / 面板 | White |
4000DX Hidden Nylon Snap Button — Black
Hidden nylon snap button designed for panel connections. The female part (4000D81) mounts on the base panel; the male ball part (4000D82) mounts on the face panel. After installation, the 5MM gap between panels creates a clean, fastener-free surface appearance. Ideal for furniture, wood panels, metal plates, and architectural decoration.
| Model | 4000D8B (Black) |
| Female Part | 4000D81 (Socket Base) |
| Male Part | 4000D82 (Ball Head) |
| Color | ⚫ Black |
| Material | Glass-Fiber Reinforced Nylon |
| Load Capacity | 15 KG per fastener |
| Panel Gap | 5 MM (after installation) |
| Base Plate Thickness | ≥ 10 MM |
| Screw Diameter | 3.5 MM |
| UV Resistance | UV-stabilized formula |
| Applications | Furniture, wood panels, metal plates, architectural decoration |
| Brand | SNOWL Hong Kong Limited |
- 🔒 Hidden Design — 5MM panel gap after installation, clean and fastener-free surface
- 💪 High Load Capacity — 15KG independent load per fastener
- ♻️ Reusable — Durable nylon supports repeated assembly and disassembly without wear
- 🛠️ Easy Installation — Standard 3.5MM screws, quick to mount
- 🌊 Salt Spray Resistant — Suitable for marine and outdoor panel applications
- 🌞 UV Stabilized — No fading or cracking under sun exposure
- ⚖️ Lightweight — Nylon construction adds no heavy burden
| Part | Model | Installation Position | Color |
|---|---|---|---|
| Female / 母扣 | 4000D81 | Base Panel / 底板 | Black |
| Male / 公扣 | 4000D82 | Face Panel / 面板 | Black |
Hidden Panel Connection — Clean & Strong
Hidden Design
5MM panel gap after installation creates a completely clean, fastener-free surface appearance on furniture and panels.
15KG Load
Each fastener independently supports up to 15KG of load — strong enough for most furniture and panel applications.
Reusable
Durable glass-fiber reinforced nylon supports repeated assembly and disassembly without degradation.
Easy Install
Standard 3.5MM screws and simple snap-together operation — no special tools required.
